LM301H LED grow light
phyto 4x4 LED Grow Light Samsung LM301H Quantum Board Smart WIFI control
Model: BA-PL301HC800W-PRO+
2022 BAVA advanced 8 panels cob horticulture 4x4 led grow light 800w Samsung lm301h uv ir phyto lamp
- ce RoHS ETL SAA
Detail information
| Minimum Order Quantity | 1 piece |
|---|---|
| Packaging Details | Packing size: 114*31*24cm, 22kg/pc |
| Delivery Time | 5-7 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability | 20000 pieces per month |
| Place of Origin | GUA |
| Brand Name | BAVAGREEN |
| Certification | ce RoHS ETL SAA |
| Model Number | BA-PL301HC800W-PRO+ |
| Product Name | 4x4 Led Grow Light 800w Samsung Lm301h Uv Ir Phyto Lamp |
| Spectrum | Full Spectrum : 3000k+5000k+Red +IR +UVA+UVB |
| LED Quantity | White 2048pcs Red 192pcs Ir 128pcs Uva 48pcs Uvb 32pcs |
| Light Source | Samsung Lm301h +oslon +epistar |
| Luminous Efficacy(μmol/J) | 2.65 |
| Mounting Height | 6" - 24" (15cm - 60cm ) Above The Canopy |
| Dimension | L 1100 W 1100 H 40 Mm / L 43.30 W 43.30 H 1.57 Inch |
| Driver | Meanwell/Sonsen |
| Feature | Independent Switches With Uvb |
| Spectrum (2) | Full Spectrum : 3000k+5000k+Red +IR +UVA+UVB |
| Light Source (2) | Samsung lm301H top bin diodes + 660nm +730nm+385nm+310nm |
| LED qty | lm301h 3000K: 1408 pcs. 5000K : 640 pcs Epistar 660nm : 192 pcs , Epistar 730nm : 128pcs Epistar UVA 385nm :48 pcs , UVB 310nm:32pcs |
| Heatsink Size | L 1100 x W1100 x H 40mm (( L 43.30in × W 43.30 in × H 1.57in) |

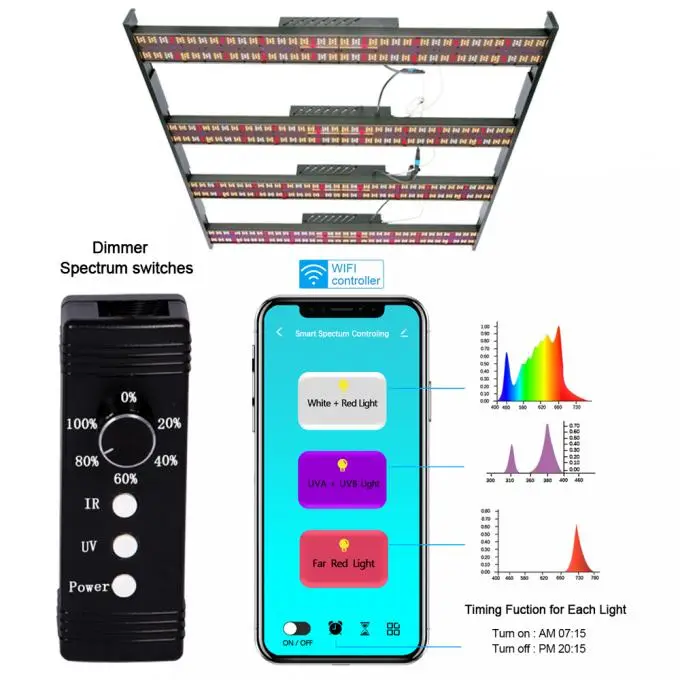

| Spectrum Channel | Spectrum Channel 1 :White + Red +IR +UVA +UVB Spectrum Channel 2 : white +Red Spectrum Channel 3 : Far red 730nm Spectrum Channel 4 : UVA 385nm + UVB 310nm |
| Light Output PPF | 2120 Umol/s |
| Efficiency | 2.65 Umol/J |
| Power | 800W(680W+IR48W+UV72W) |
| Voltage | AC100-277V ,50 / 60 Hz |
| Mounting Height (2) | 6" - 24" (15cm - 60cm ) Above the Canopy |
| Veg & Flowering Footprint | 4 x4 / (5X5) sq ft grow area |
| Driver (2) | Meanwell /Sonsen Driver |
| Dimming | 0-100% dimming |
| Warranty | 3 Years |
Listed from the previous BAVAGREEN catalog. Confirm on inquiry. This page is not a checkout.
Features
- Phyto 4x4 LED Grow Light
- LM301H 4x4 LED Grow Light
- Smart WIFI Samsung LM301H Quantum Board
Product description
2022 BAVA advanced 8 panels cob horticulture 4x4 led grow light 800w Samsung lm301h uv ir phyto lamp
What's included
Packing size: 114*31*24cm, 22kg/pc
