Dimming LM301H Quantum Board Full Spectrum 540W 4x4 LED Grow Light

LM301H LED grow light

Dimming LM301H Quantum Board Full Spectrum 540W 4x4 LED Grow Light

Model: BA-PL301B-480W-04

Full Spectrum 540W Led Grow Lights Samsung LM301B Samsung LM301B LM301H Quantum Board

  • CE ETL EMC RoHS
InquireWhatsApp

Detail information

Detail information
Minimum Order Quantity1
Packaging DetailsConventional packaging or whatever your idea 89*34*27.5
Delivery Time7-15days
Payment TermsL/C, D/A, D/P, T/T, Western Union,
Place of Originchina guangdong
Brand NameBAVA
CertificationCE ETL EMC RoHS
Model NumberBA-PL301B-480W-04
Product NameBA-PL301B-480W-04
Efficacy2.65umol/watt
Light Output PPF1430 Umol/s
Light SourceSamsung Lm301H Top Bin Diodes + 660nm +730nm+385nm+381nm
Veg & Flowering Footprint4 X4 Sq Ft Grow Area
DriverSosen Driver/ Meanwell Driver
Heatsink DimensionL 630 X W600 X H 31mm (（ L 24.80in × W 23.62 In × H 1.22in）
Dimming0-10V Dimming

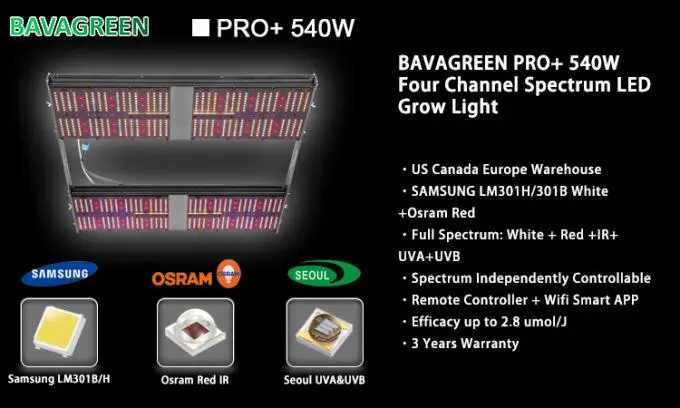

LED quantitylm301h 3000K: 704 pcs. 5000K : 320 pcs Osram 660nm : 48 pcs , Epistar 730nm :72 pcs Epistar UVA 385nm :24 pcs , UVB 310nm:16 pcs

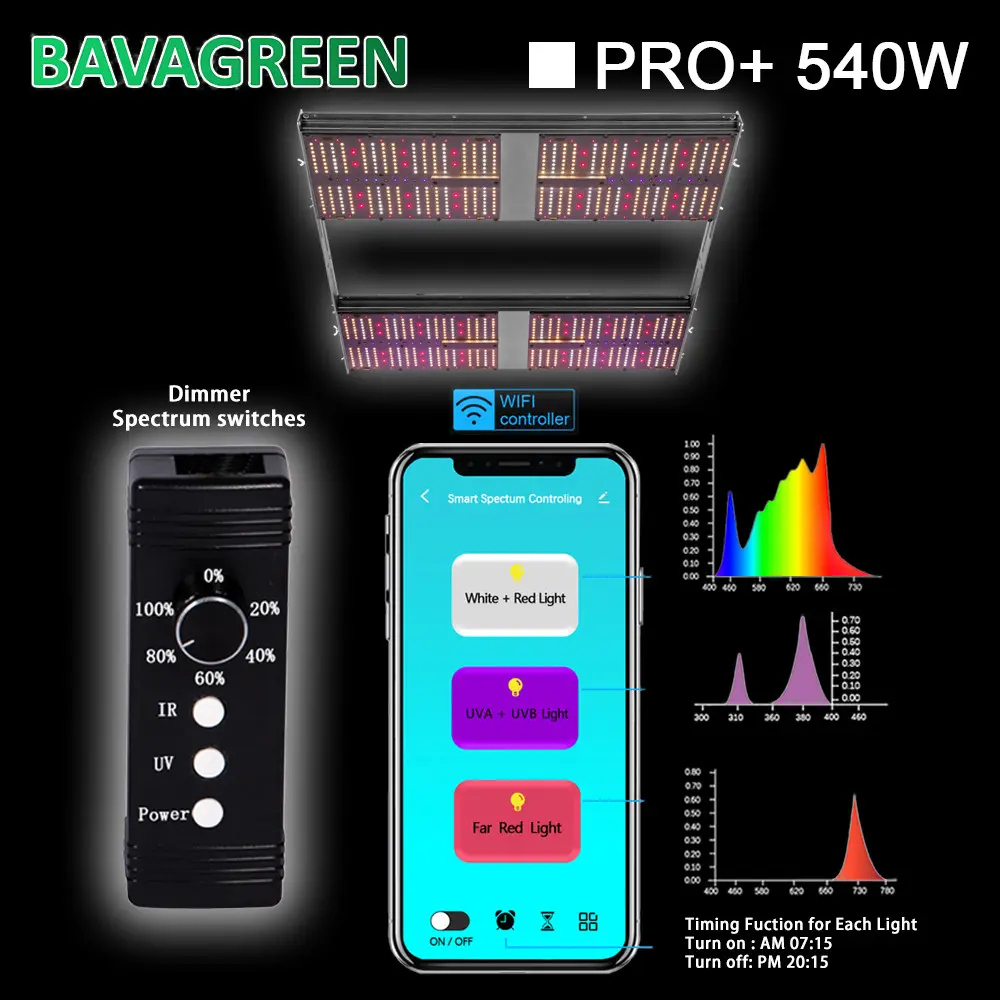

Spectrum ChannelSpectrum Channel 1 : white +red 660nm+ far red 730nm+310 nm +385nm Spectrum Channel 2 : white +red 660nm Spectrum Channel 3 : Far red 730nm Spectrum Channel 4 : UVA 385nm + UVB 310nm
Heatsink Dimension (2)L 630 x W600 x H 31mm (( L 24.80in × W 23.62 in × H 1.22in)
Weight12KG / 26.4LB
Light Output PPF (2)1430 Umol/s
Power540W(480W+IR26W+UV34W)
Efficacy (2)2.65umol/watt
VoltageAC100-277V ,50 / 60 Hz
Mounting Height6" - 24" (15cm - 60cm ) Above the Canopy
Driver (2)Sosen Driver/ Meanwell Driver
Dimming (2)0-10V dimming
Warranty3 Years

Listed from the previous BAVAGREEN catalog. Confirm on inquiry. This page is not a checkout.

Features

  • Dimming LM301H Quantum Board
  • LM301H Quantum Board 4x4 sq ft
  • 540W 4x4 LED Grow Light
  • The first-class RESEARCH and development team, from the appearance of the beautiful to

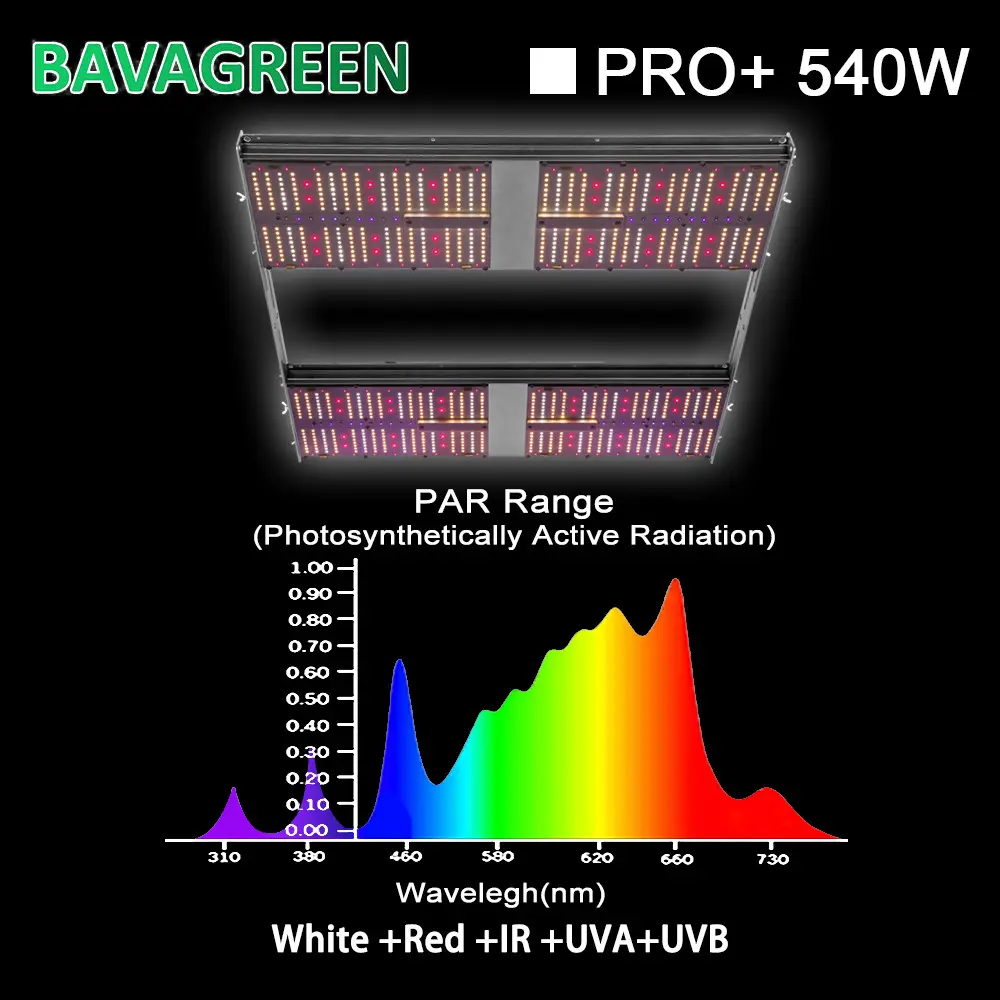

  • Full spectrum(300 nm-730nm), the white part of the 5000K cold light and 3000K warm light
  • Integration of industry and trade, we have our own survival workshop, to give you faster

Product description

Full Spectrum 540W Led Grow Lights Samsung LM301B Samsung LM301B LM301H Quantum Board

About us

the product design of multi-function, Pro + is more upgraded to add UVB elements, can better

stimulate the plant extract

combined, can give more suitable light according to different growth stages of plants,

white +red 660nm+ far red 730nm+310 nm +385nm

and more effective after-sales service, your problems can always be solved quickly, happy experience

DriverSosen Driver/ Meanwell Driver

What's included

Conventional packaging or whatever your idea 89*34*27.5
