LM301B quantum board
12kg White Oslon 660nm Quantum Board 480 Watt SAMSUNG LM301B LED board
Model: BA-GL-301H-PRO-480W
LM301B Quantum board 480W Samsung Lm301h White Oslon Red Far Red UV Switches
- ETL
- CE
- Rosh
- SAA
Detail information
| Minimum Order Quantity | 1 Pcs |
|---|---|
| Packaging Details | 1pcs/carton(70*23*28cm, 12kg) |
| Delivery Time | Samples : 3-7 days . Bulk order 15-20days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 1000 pcs per month |
| Place of Origin | China |
| Brand Name | BAVAGREEN |
| Certification | ETL, CE, Rosh,SAA |
| Model Number | BA-GL-301H-PRO-480W |
| Driver | Meanwell Driver |
| Weight | 12kg |
| Feature | High Quality Best Material, Free Assembly And 3 Years Warranty |
| Lumen | 76800lm |
| LED Light Source | Samsung Lm301b Oslon 660nm 730nm Uv 385nm |
| Dimming | Yes |
| CRI (Ra>) | 90 |
| Light Output(μmol/s) | 1224 |
| Luminous Efficacy | 2.55 |
| IP Rating | IP20 |
| Spectrum | Full Spectrum (385nm-730nm ) |
| Light Source | Samsung lm301b top bin diodes + Oslon ssl + Seoul |
| LED quantity | lm301b 3000K: 704 pcs. 5000K : 320 pcs Oslon SSL 660nm : 48 pcs. 730nm 16 pcs Seoul 385nm :16 pcs |
| Heatsink Size | L 630 x W600 x H 31mm (( L 24.80in × W 23.62 in × H 1.22in) |
| Light Output PPF | 1224 Umol/s |
| Efficiency | 2.55 Umol/Watt |
| Power | 480W |
| Voltage | AC100-277V ,50 / 60 Hz |
| Mounting Height | 6" - 24" (15cm - 60cm ) Above the Canopy |
| Veg & Flowering Footprint | 4 x4 sq ft grow area |
| Driver (2) | 2pcs Meanwell Driver 240h-C2100B |
| Dimming (2) | 0-100% dimming |
| Warranty | 3 Years |
Listed from the previous BAVAGREEN catalog. Confirm on inquiry. This page is not a checkout.
Features
- Oslon 660nm Quantum Board 480 Watt
- 12kg SAMSUNG LM301B LED board
- 12kg 660nm Quantum Board
- APP Smart control
- Optional Samsung LM301B with high efficiency 2.55umol/J.
- LED Samsung board with uv ir.
- Experimentally-certified light recipe for healthier plant growth.
- Perfect performance for veg and bloom.
- Dimmable Power Supply is included.
- Input Voltage: 85~277VAC .
- Lifetime: 30,000hrs,Warranty:3yrs.
Product description
LM301B Quantum board 480W Samsung Lm301h White Oslon Red Far Red UV Switches

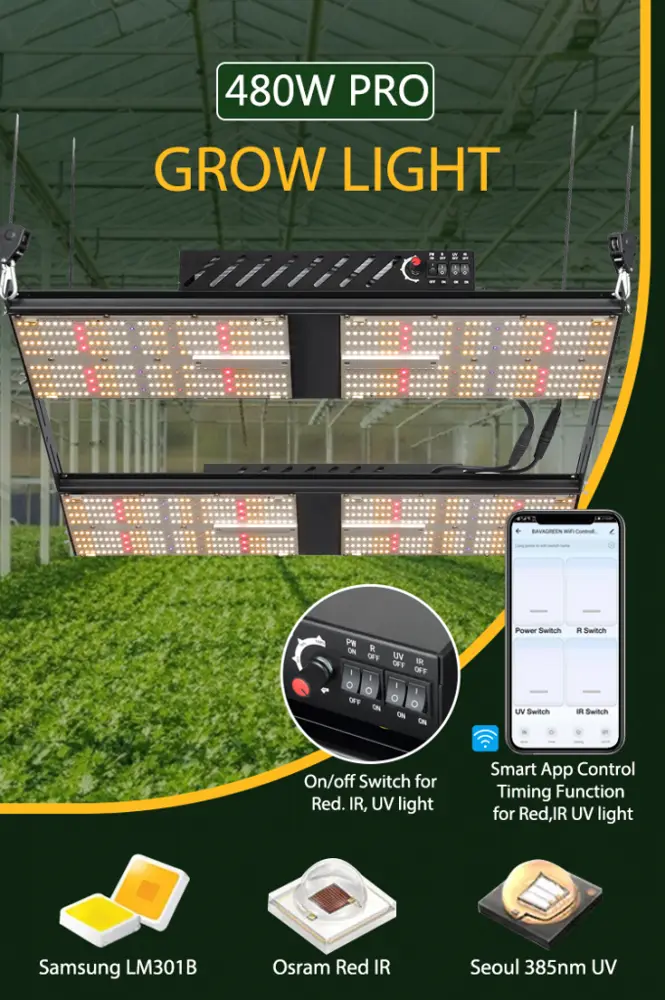

led grow light apply to greenhouse and indoor plant vertical farming system grow lighting. Adopt Smart control system.
Spectrum adjustment, Dimming and Group control can be achieved through APP Smart control.

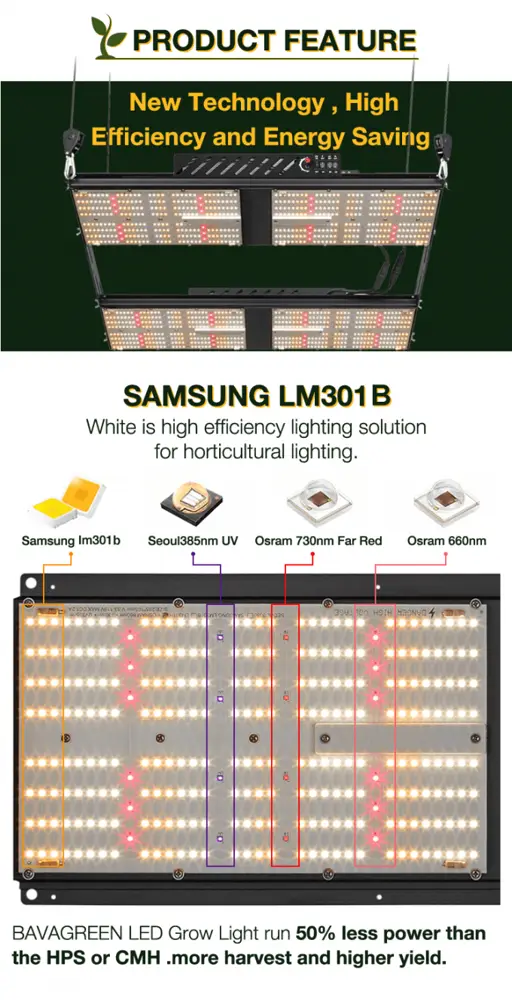

This is using Samsung LM301B full spectrum (385nm-730nm, 3000K, 5000K), far red 660nm and 730nm chips .
This grow lamp is waterproof that suitable for more indoor plant growing environment,
Due to can provide sufficient light for the whole process of plant growth that able to shorten the growth cycle of planting.
What's included
1pcs/carton(70*23*28cm, 12kg)
